Send Captions to Accelevents (RTMP 608)

Insert real-time captions into a live stream being sent to Accelevents using a SyncWords Service in a few easy steps

Step 1 - Create a Service

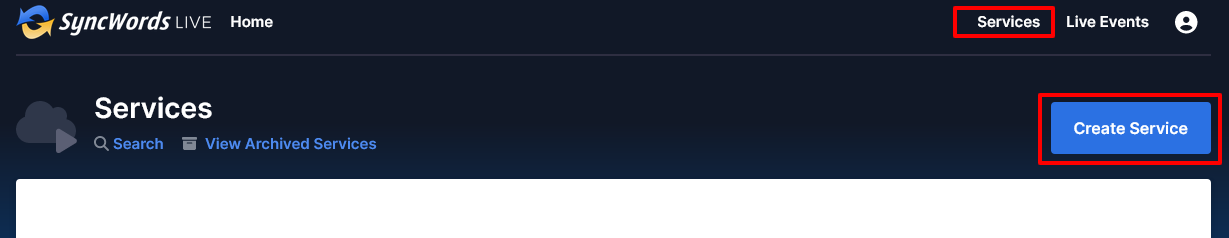

To Create a Service, go to Services and click "Create Service".

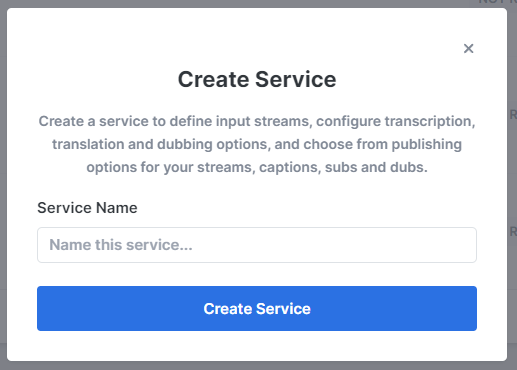

Give your Service a name and click the "Create Service" button.



Step 2 - Provide Input Media

From the "Input Stream Type" drop-down, select RTMP. Then select the "RTMP Push" or "RTMP Pull" option.

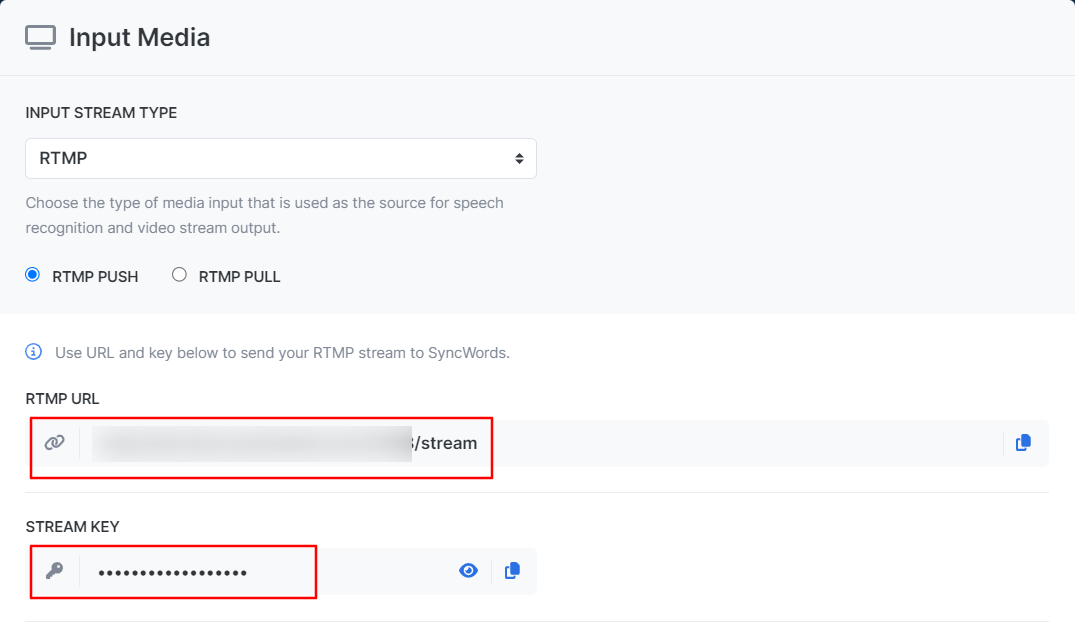

RTMP Push

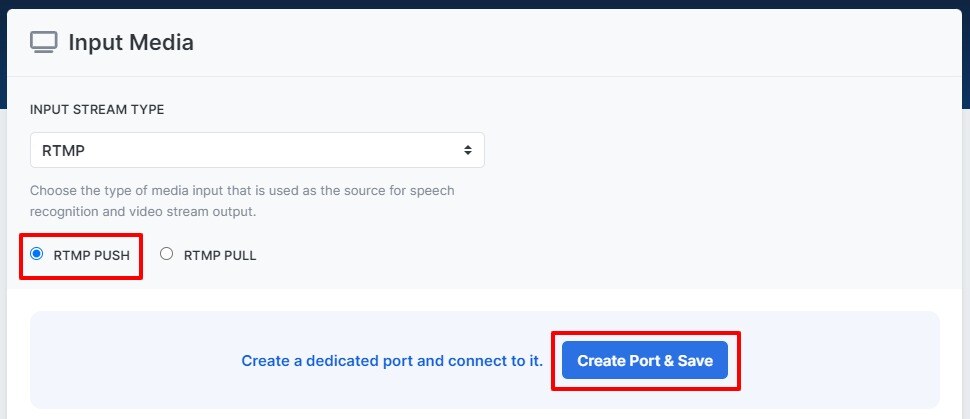

RTMP Push will generate the RTMP URL and key combination to which you will send your stream. To generate the URL and key click the "Create Port & Save" button.

Copy the values generated and enter them into your existing live streaming software or service (OBS, Wirecast, Streamyard, etc.) to send your stream to SyncWords.

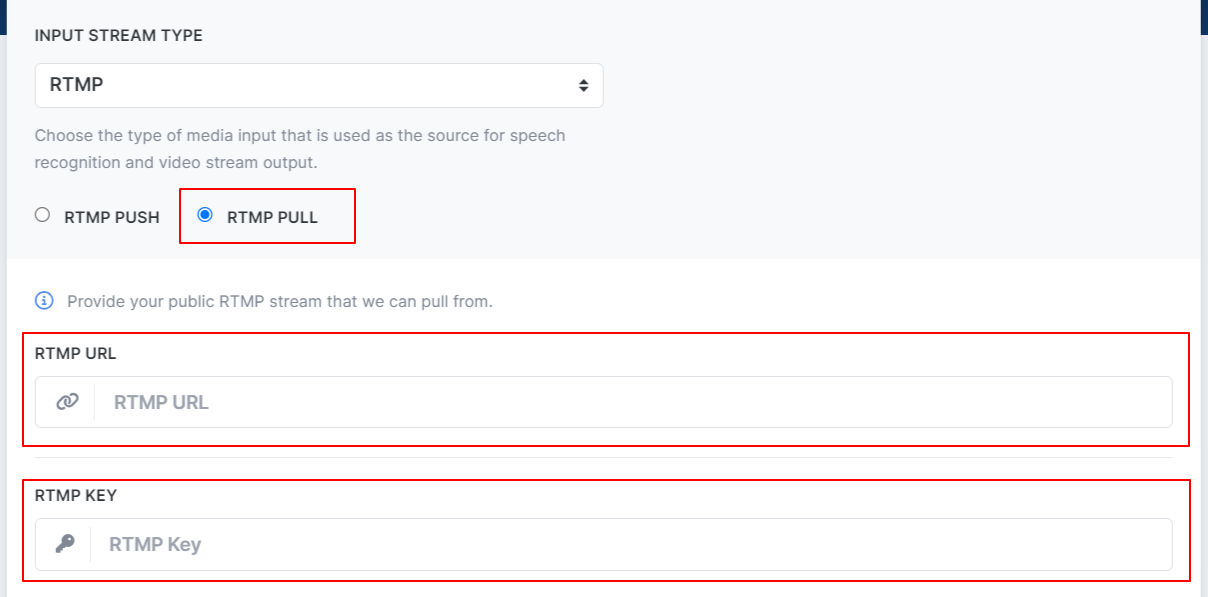

RTMP Pull

Selecting RTMP Pull will create a field from which you can enter a public RTMP stream that we can pull.

Remember to click the "Save" button once you have entered your values.

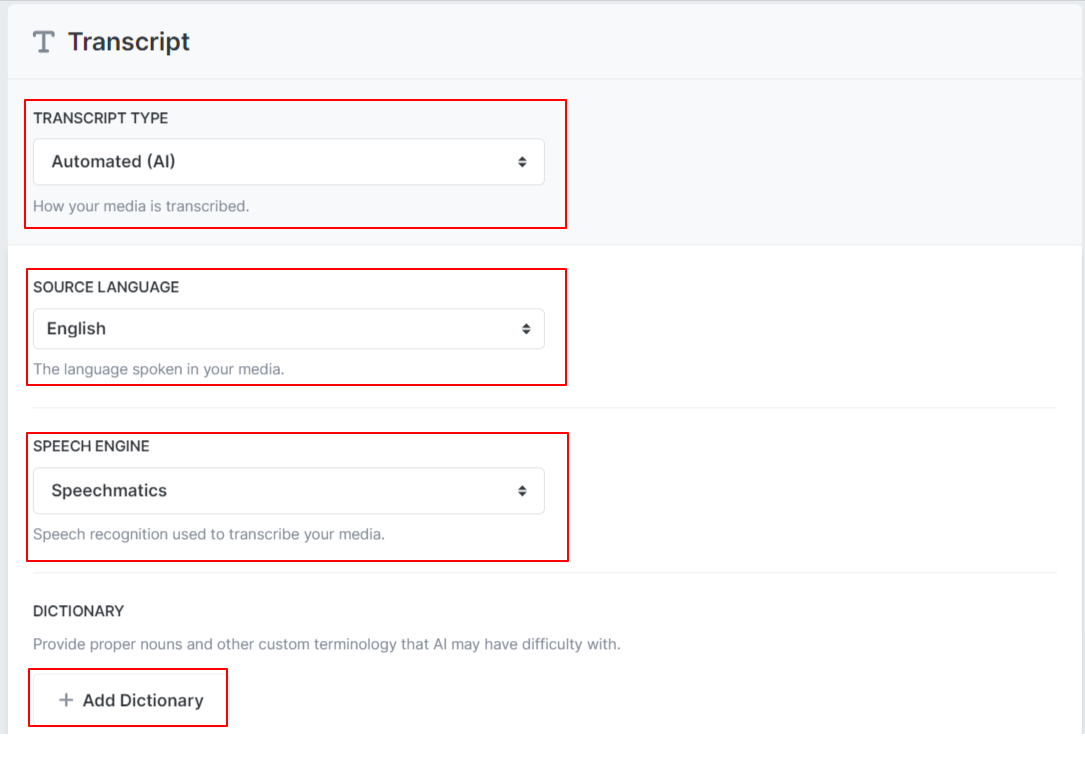

Step 3 - Set up Transcription

Now that we have set up the incoming stream we need to set up the Transcript section to create the captions. Use the available dropdowns to set the "Source Language" of the event, the "Speech Engine" you would like to use and optionally add or select an existing dictionary.

Step 4 - Set up Translations (optional)

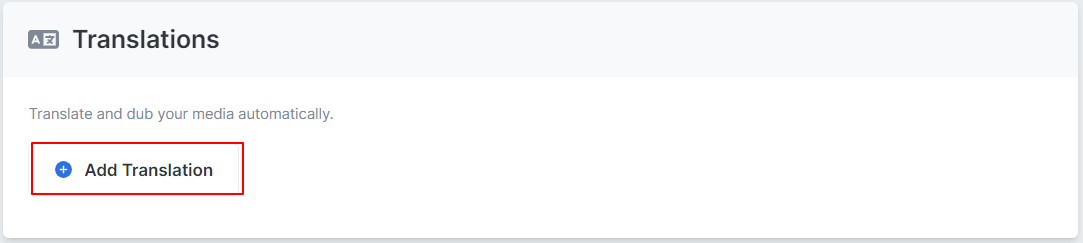

If you want to send alternate language subtitles to your live stream instead of the source language captions you can do so using the Translations section. Click the "Add Translation" button and select the language you want to add from the dropdown.

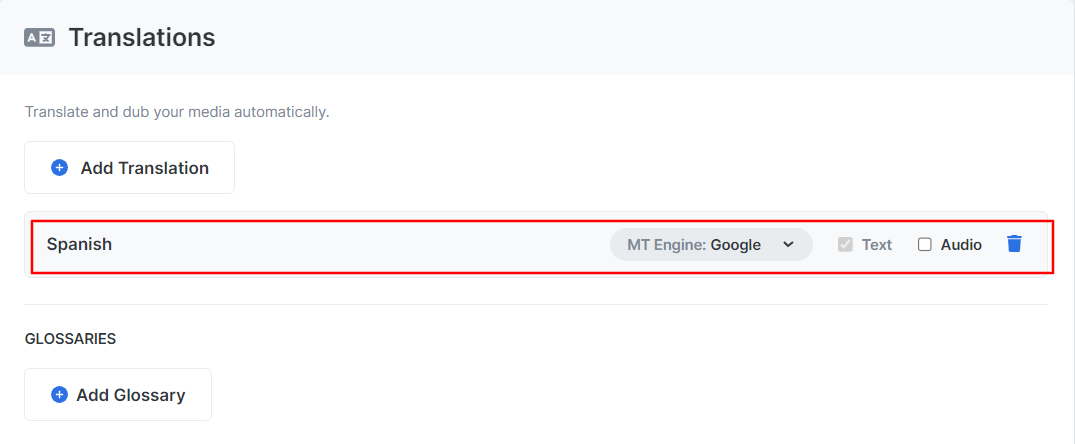

Once you have selected your translation language you can configure it by selecting the translation engine you want to use and optionally add or select an existing glossary.





 Step 5 - Set up the Output

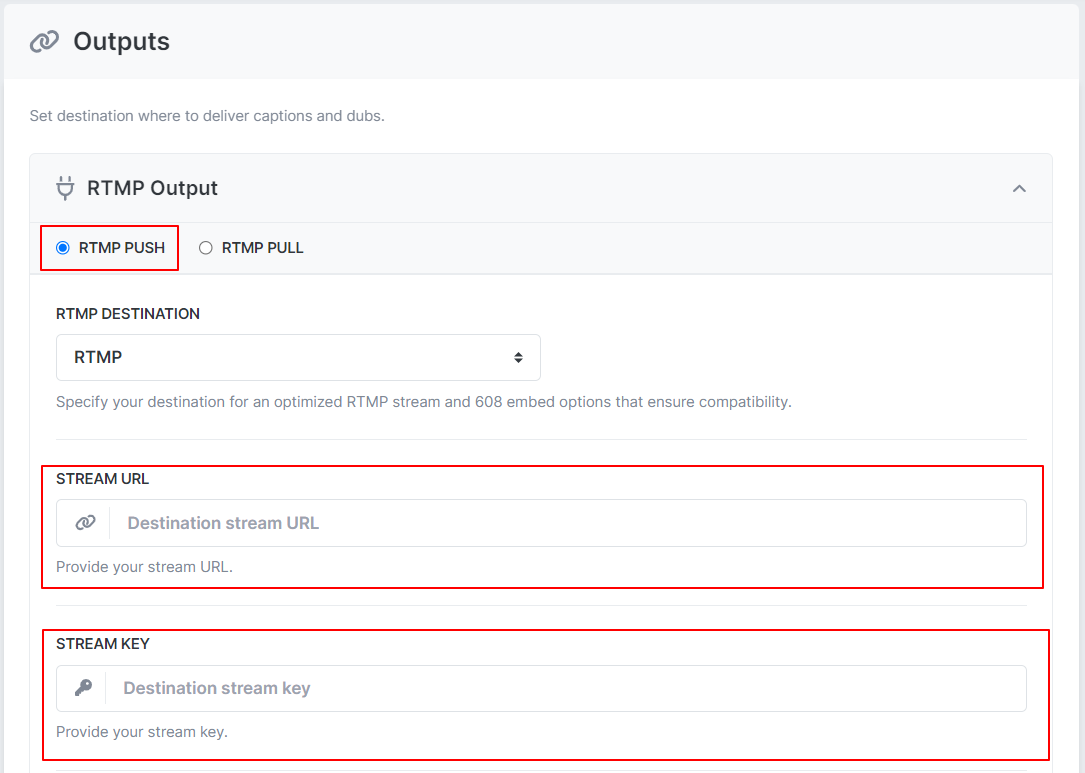

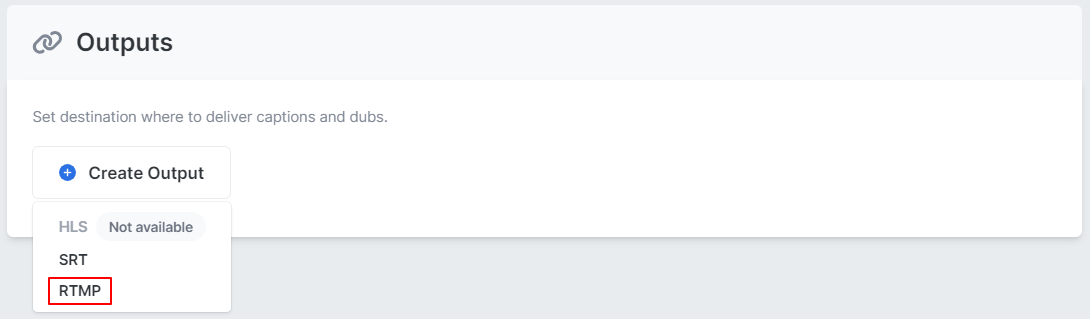

The last step is to set up the stream that will go out to a custom RTMP endpoint with the embedded 608 captions. Click the "Create Output" button and select RTMP from the drop-down.

A modal will pop up with "RTMP Push" selected by default. Leave that as is. Enter the "Destination URL" and the "Destination Key" in the corresponding fields.

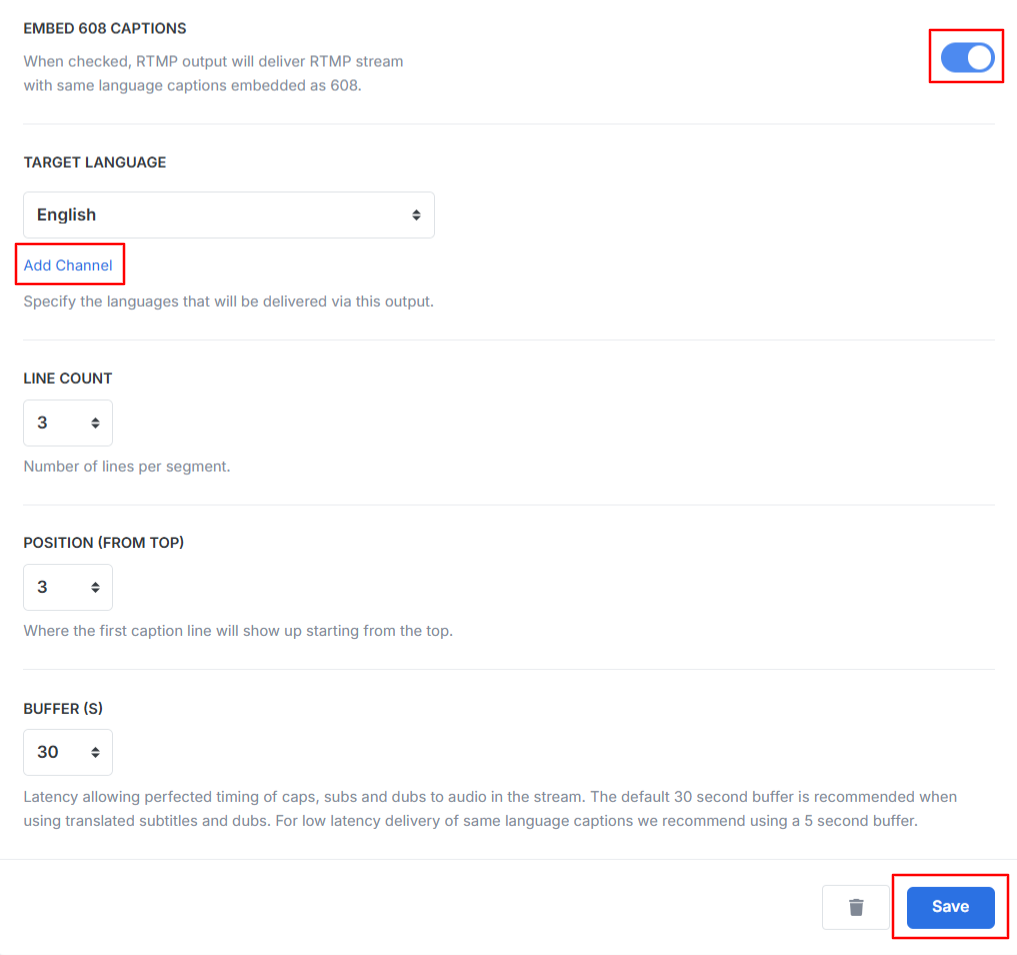

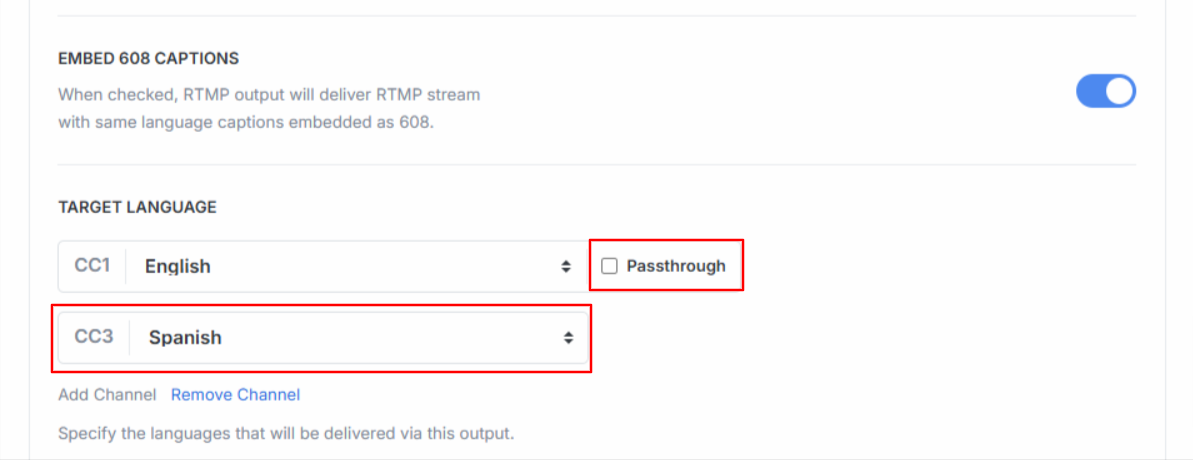

Make sure the "Embed 608 captions" is turned on. You can also adjust the number of lines and position of the captions. If you have enabled translations pick the "Target Language" you want to send to your destination. If you want to send a second language on the CC3 channel click the "Add Channel" option and select the language you want to send to CC3 using the corresponding dropdown. You can also adjust the buffer value of the captions. Make sure to click "Save" once your selections are set.





Roll-up line count - Configure the number of roll-up lines to display.

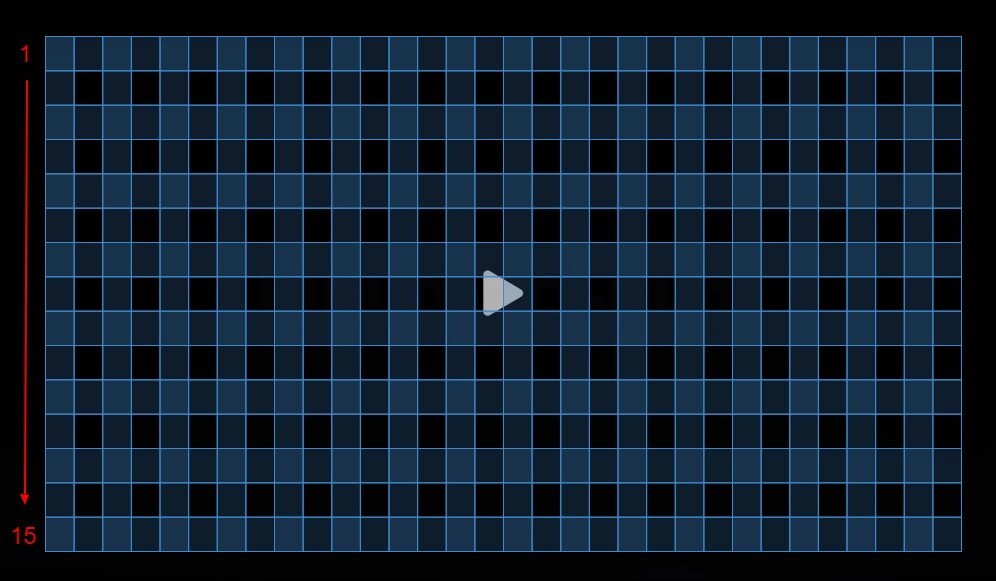

Positioning (from top) - Set the row where the first caption will appear on the screen. 1 is the top of the screen, 15 is the bottom.





Getting the Stream URL and Key from Accelevents

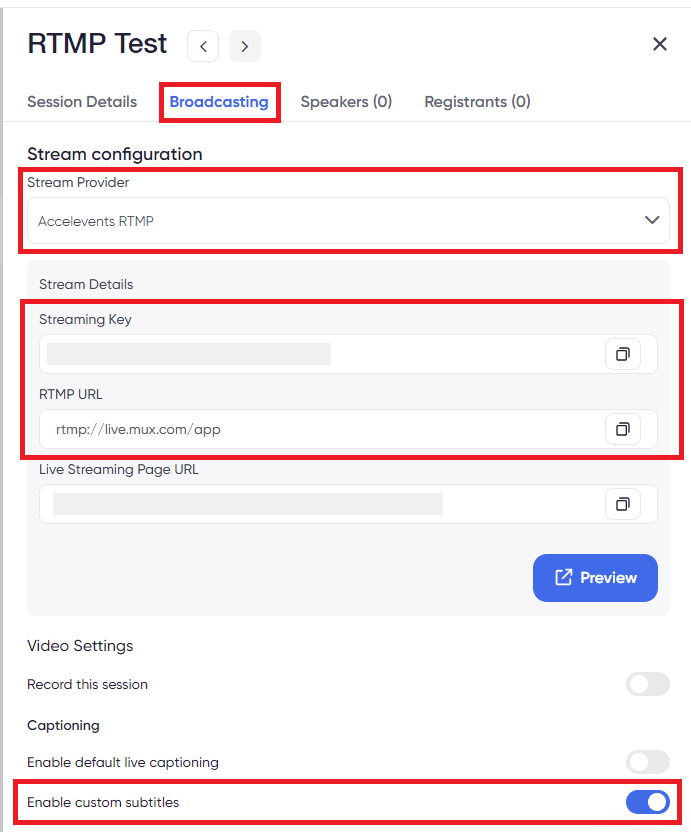

Go to your Main Stage or Regular Session setup on Accelevents and click the "Broadcasting" tab. Set up your Stream Configuration by selecting "Accelevents RTMP" as your stream provider. Then, from the "Stream Details" populated, copy the RTMP URL and Streaming Key to enter into your Syncwords service output as the "Destination URL" and the "Destination Key".

Finally, ensure that you turn on the "Enable custom subtitling" toggle under "Video Settings" > "Captioning".
