What's the best way to validate SRT connectivity before adding encoders, packagers, or CDNs?

Test SRT connectivity with SyncWords before adding encoders, packagers, or CDNs — isolate issues early with this simple validation workflow.

Before integrating SyncWords into a larger broadcast or streaming workflow, always begin by validating a simple end-to-end SRT connection.

This basic workflow confirms that video, networking, captions, subtitles, and audio dubbing are all functioning correctly before introducing additional components such as cloud encoders, packagers, CDNs, media processors, or distribution platforms.

If this baseline workflow succeeds, any issues introduced later can be isolated to the downstream infrastructure rather than the SyncWords integration.

Recommended Test Workflow

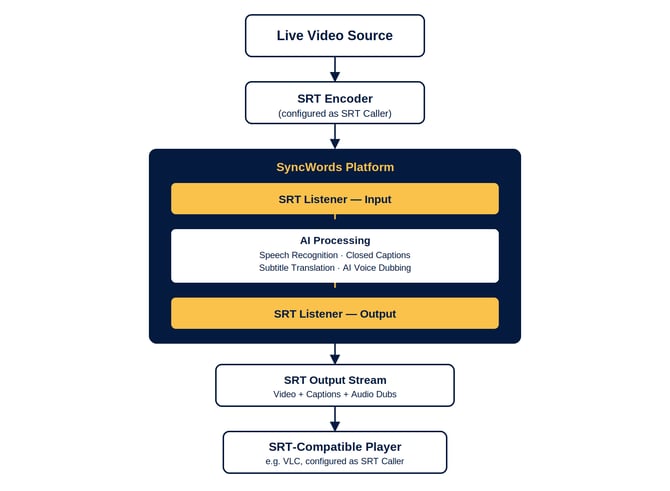

srt-testing-workflow-diagram (1)

At a high level: your encoder connects to SyncWords as an SRT Caller. SyncWords receives the stream, runs AI processing (speech recognition, captions, translation, and/or dubbing), and returns an SRT output stream. Any SRT-compatible player (VLC is a common, free choice) can connect to that output to confirm everything is working.

For the exact settings needed on the SyncWords side (SRT mode, port, and stream ID), see Embed 608 Captions and Audio Translations into an SRT Stream.

Testing Objectives

Verify the following before expanding the workflow:

  • Stable SRT connection established
  • Live video reaches SyncWords
  • Captions are generated correctly
  • Subtitle translations appear as expected
  • AI dubbed audio tracks are present (when enabled)
  • Your player successfully receives and plays the returned SRT stream
  • Overall latency is within expectations

Why Start Simple?

Adding additional systems too early makes troubleshooting significantly more difficult. Downstream components are common and generally reliable, but each one adds another potential point of failure between your source and your viewers — for example:

  • AWS MediaLive
  • AWS MediaPackage
  • Ateme Titan
  • Harmonic
  • Evertz
  • Sencore
  • Haivision
  • Wowza
  • CDNs
  • Custom player integrations

Each additional component introduces another potential point of failure, including:

  • Firewall rules
  • Incorrect IP addresses
  • Port configuration
  • SRT mode mismatches
  • Audio mapping
  • Subtitle PID configuration
  • Codec incompatibilities
  • Authentication settings
  • Network routing
  • Player configuration

When several systems are connected simultaneously, it becomes difficult to determine where the problem originates.

Best Practice

Treat the SyncWords SRT workflow as the "known good" baseline. Once the following workflow has been validated:

Live Source → Encoder → SyncWords → Player

begin adding downstream components one at a time, validating each addition before proceeding. For example:

  1. Verify basic SRT workflow.
  2. Add MediaLive or another downstream processor.
  3. Verify operation.
  4. Add MediaPackage.
  5. Verify operation.
  6. Add CDN or player.
  7. Verify operation.
  8. Continue expanding the workflow incrementally.

This staged approach dramatically reduces troubleshooting time and makes it much easier to identify configuration issues.

Troubleshooting Philosophy

If the basic SRT workflow does not work, do not continue building the workflow. Resolve the issue at the simplest level first.

Only after the direct SyncWords SRT workflow is operating correctly should additional contribution, processing, packaging, or distribution components be introduced.

Following this methodology results in faster deployments, simpler debugging, and a much higher first-time success rate.

If your basic SRT test isn't connecting or isn't producing the expected captions, translations, or dubs, contact SyncWords Support before adding any additional components.
